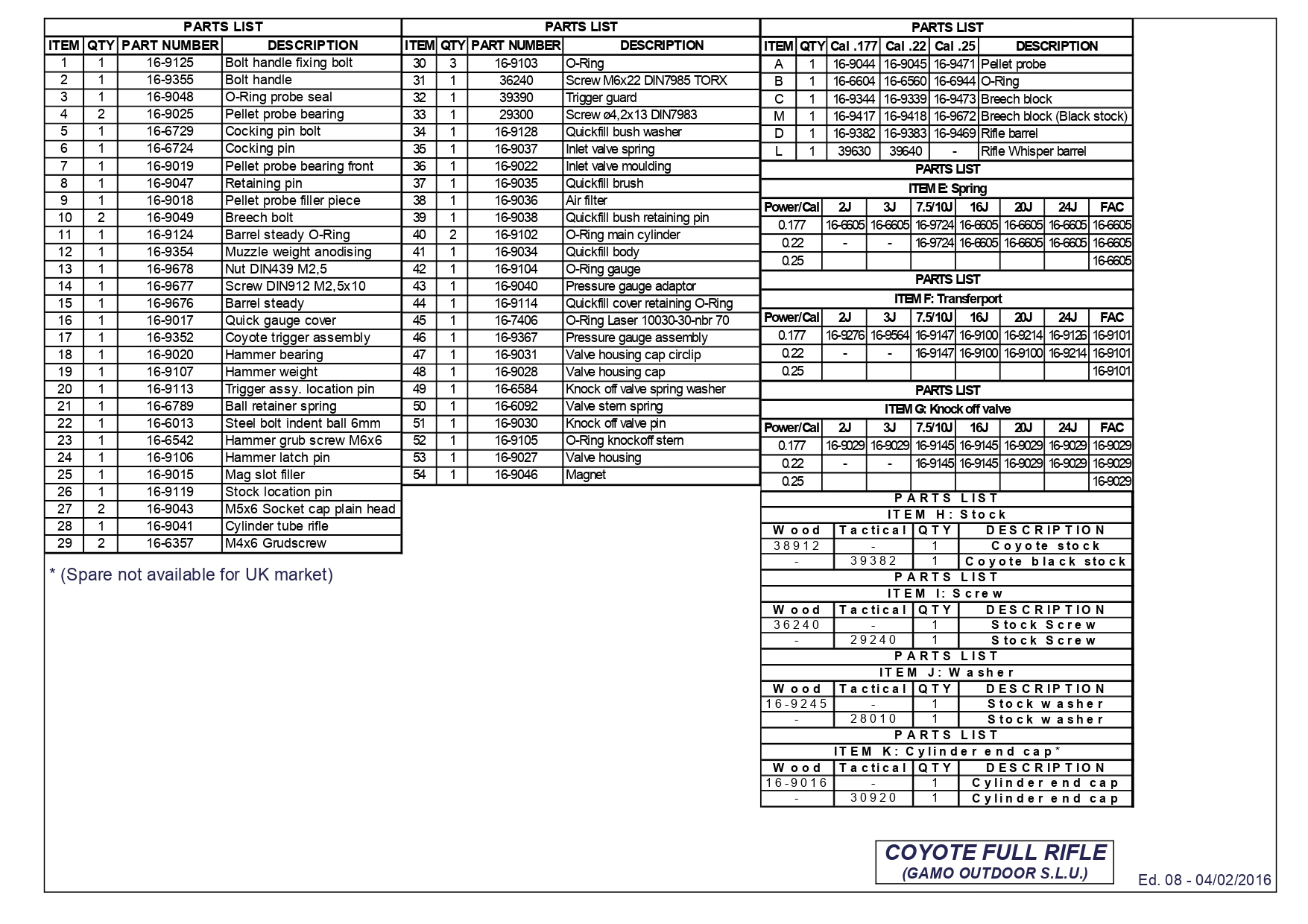

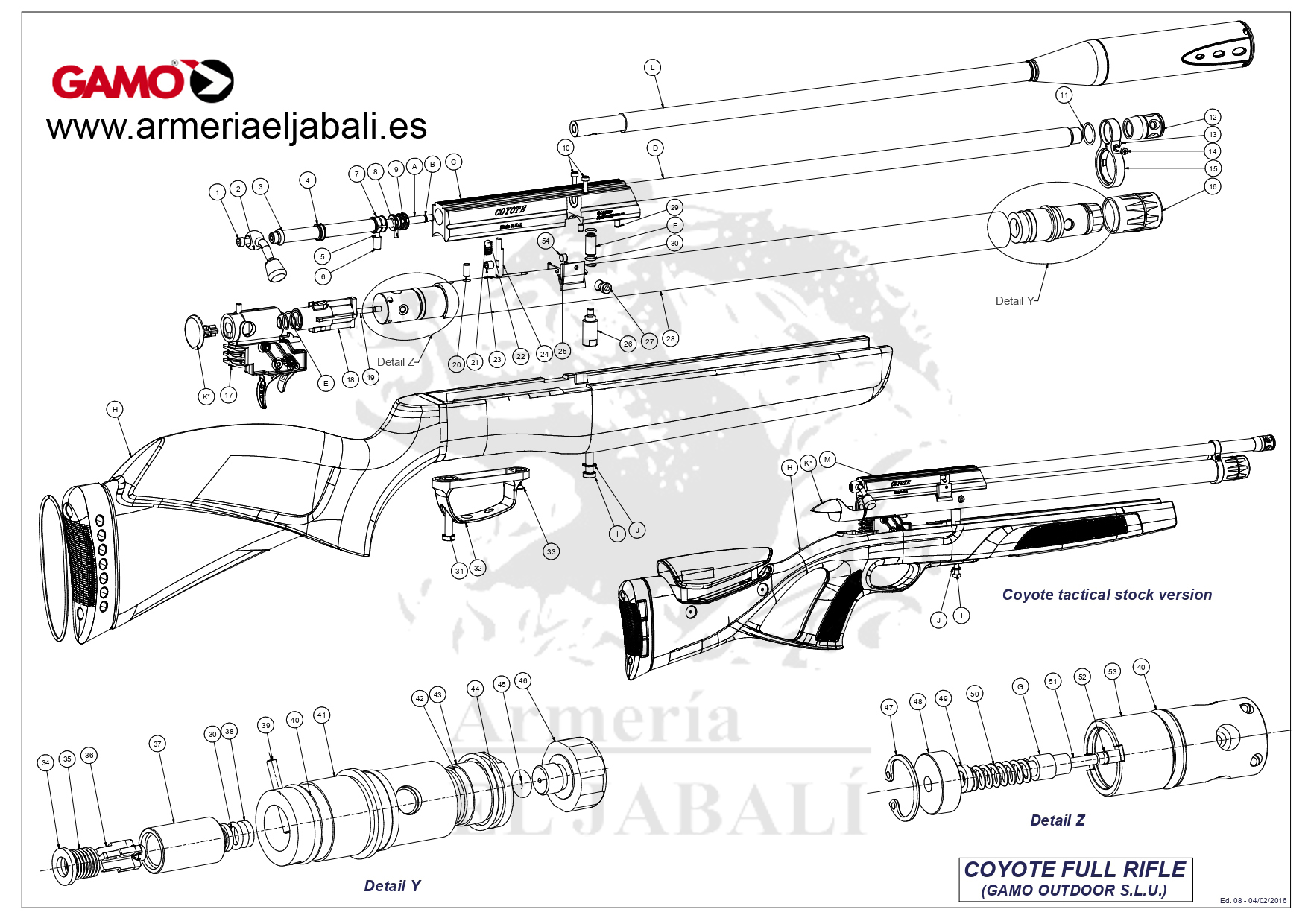

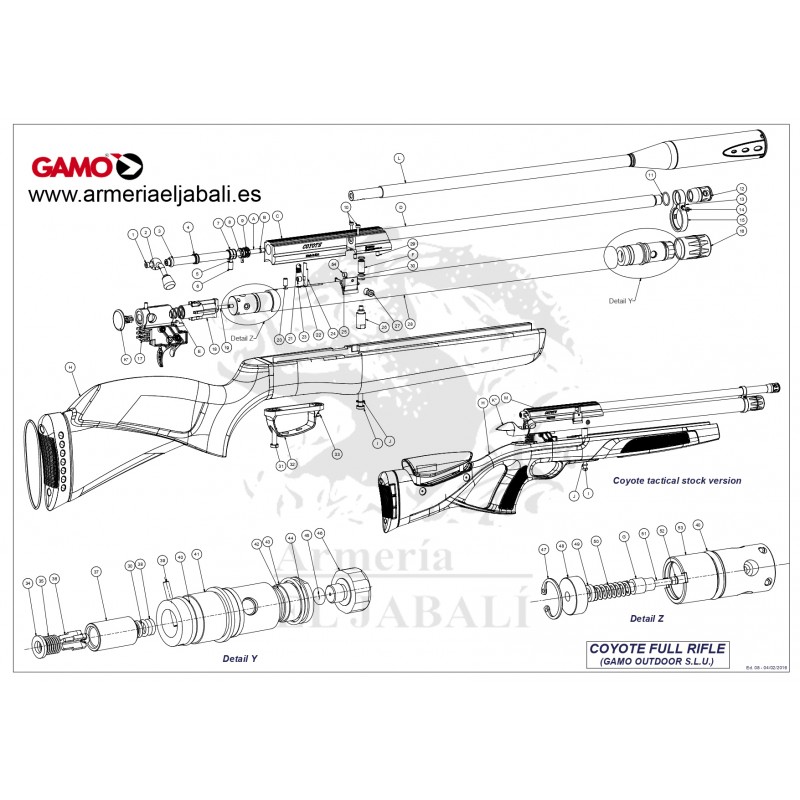

DESPIECE CARABINA PCP GAMO COYOTE

ITEM QTY PART NUMBER DESCRIPTION

1  16-9125 Bolt handle fixing bolt
2  16-9355 Bolt handle
3  16-9048 O-Ring probe seal
4  16-9025 Pellet probe bearing
5  16-6729 Cocking pin bolt
6  16-6724 Cocking pin
7  16-9019 Pellet probe bearing front
8  16-9047 Retaining pin
9  16-9018 Pellet probe filler piece
10 16-9049 Breech bolt
11 16-9124 Barrel steady O-Ring
12 16-9354 Muzzle weight anodising
13 16-9678 Nut DIN439 M2,5
14 16-9677 Screw DIN912 M2,5x10
15 16-9676 Barrel steady
16 16-9017 Quick gauge cover
17 16-9352 Coyote trigger assembly
18 16-9020 Hammer bearing
19 16-9107 Hammer weight
20 16-9113 Trigger assy. location pin
21 16-6789 Ball retainer spring
22 16-6013 Steel bolt indent ball 6mm
23 16-6542 Hammer grub screw M6x6
24 16-9106 Hammer latch pin
25 16-9015 Mag slot filler
26 16-9119 Stock location pin
27 16-9043 M5x6 Socket cap plain head
28 16-9041 Cylinder tube rifle
29  16-6357 M4x6 Grudscrew

30 16-9103 O-Ring

31 36240 Screw M6x22 DIN7985 TORX
32 39390 Trigger guard
33 29300 Screw ø4,2x13 DIN7983
34 16-9128 Quickfill bush washer
35 16-9037 Inlet valve spring
36 16-9022 Inlet valve moulding
37 16-9035 Quickfill brush
38 16-9036 Air filter
39 16-9038 Quickfill bush retaining pin
40 16-9102 O-Ring main cylinder
41 16-9034 Quickfill body
42 16-9104 O-Ring gauge
43 16-9040 Pressure gauge adaptor
44 16-9114 Quickfill cover retaining O-Ring
45 16-7406 O-Ring Laser 10030-30-nbr 70
46 16-9367 Pressure gauge assembly
47 16-9031 Valve housing cap circlip
48 16-9028 Valve housing cap
49 16-6584 Knock off valve spring washer
50 16-6092 Valve stern spring
51 16-9030 Knock off valve pin
52 16-9105 O-Ring knockoff stern
53 16-9027 Valve housing
54 16-9046 Magnet

A 16-9044 16-9045 16-9471 Pellet probe
B 16-6604 16-6560 16-6944 O-Ring
C 16-9344 16-9339 16-9473 Breech block
M 16-9417 16-9418 16-9672 Breech block (Black stock)
D 16-9382 16-9383 16-9469 Rifle barrel
L 39630 39640 - Rifle Whisper barrel

PARTS LIST
Power/Cal 2J 3J 7.5/10J 16J 20J 24J FAC
0.177 16-6605 16-6605 16-9724 16-6605 16-6605 16-6605 16-6605
0.22 - - 16-9724 16-6605 16-6605 16-6605 16-6605
0.25 16-6605

Power/Cal 2J 3J 7.5/10J 16J 20J 24J FAC
0.177 16-9276 16-9564 16-9147 16-9100 16-9214 16-9126 16-9101
0.22 - - 16-9147 16-9100 16-9100 16-9214 16-9101
0.25 16-9101

Power/Cal 2J 3J 7.5/10J 16J 20J 24J FAC
0.177 16-9029 16-9029 16-9145 16-9145 16-9029 16-9029 16-9029
0.22 - - 16-9145 16-9145 16-9029 16-9029 16-9029
0.25 16-9029
